PoE NVR:
Processor: Industrial embedded microcontroller
Operating system: Embedded LINUX operating system
Image decoding: 720P, 960P, 1080P, 3MP, 4MP, 5MP, 8MP video encoding
Video access: 8*720P/960P/1080P/3MP/4MP/5MP/8MP
Video output: 1080P@60fps, 4K@30fps (1 VGA output, 1 HDMI output)
Video recording mode: Timed recording, motion detection recording
Video storage: SATA hard disk*1 up to 6TB
Video playback: 1*8MP playback; 1*5MP playback; 2*3MP playback; 8*1080P playback
Backup mode: USB backup and network backup
Audio output/audio input: 1*3.5mm audio interface (supports HDMI audio output)
Network:
Network interface: 1*RJ45 10M/100Mbps adaptive Ethernet interface
POE: 8* PoE IEEE802.3af/RJ45 10M/100Mbps adaptive Ethernet interface
USB: 2 USB 2.0
Network protocol: TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,P2P
ONVIF protocol: support
Network security: account verification
Web terminal: \
Mobile app Easy Cloud: (Android, IOS)
Camera:
Sensor: 1/2.5” CMOS Sensor, color: 0.1 Lux, black/white: 0.01 Lux
Video encoding: H.264/H.265
Audio encoding: ACC
Maximum resolution: Main stream: 3840x2160@15fps; sub-stream: 720x576@15fps
Lens: 4mm
White balance: automatic
Noise reduction: 2D/3D Digital noise reduction
Wide dynamic: Support digital wide dynamic
High light suppression: \
Backlight compensation: \
Defog: \
OSD character overlay: \
Privacy shielding: \
Intelligent detection: Motion detection; support JPEG capture

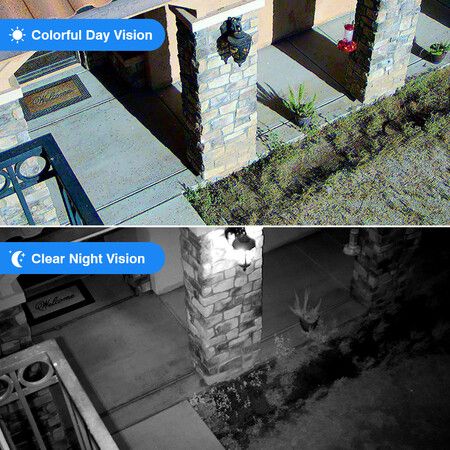

Night vision fill light: Infrared light + white light (20M)
Day and night conversion mode: IR-CUT infrared filter type
Audio: Optional, support voice intercom/built-in microphone speaker
SD card: \
Others:
Power supply: DC52V 2A
Reset button: \
Power consumption:≈58W
Packing size: 335*270*305mm/set
Weight: 8.35kg set
Installation method: Universal installation
Accessories:
20m network cable*8
1m network cable*1
Mouse*1
Instruction manual*1
Installation screw package*8
HDD screw package*1
Standard sticker*8
Tail waterproof cap*8
Working temperature: -10°C~+55°C
Working environment: Outdoor/indoor

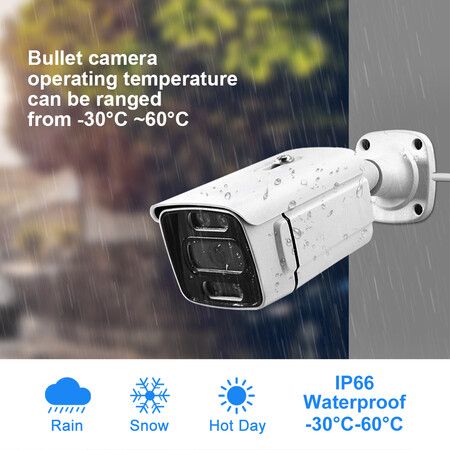

Protection level: IP66
