Features
|
Use SP2316 black light sensor with 1.6 black light lenses, to achieve full-colour night vision in low light environment
|

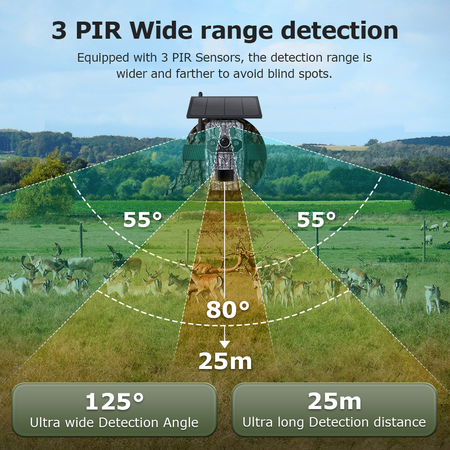

3 PIR lens design (wide-angle dual PIR + long-distance PIR); Provide longer detect distance and wider angle
|

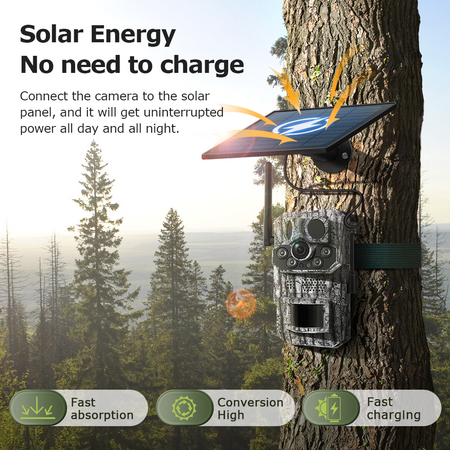

5W monocrystalline silicon solar panel, 7800MA built-in lithium battery
|
Built-in microphone and speaker, support two ways audio
|
Built-in temperature detection module to detect the surrounding temperature in real time (optional)
|
Built-in GPS module to achieve real-time positioning (optional)
|
Support max local storage TF card 128GB and Cloud storage
|
APP support Android/IOS
|
Small size, low shipping cost, IP66 outdoor waterproof
|
Support Bluetooth connection, simpler operation
|
Use 940nm infrared night vision, infrared is invisible
|
5 dB 4G antenna, more stable signal
|
Support animal AI recognition (cloud storage required)
|

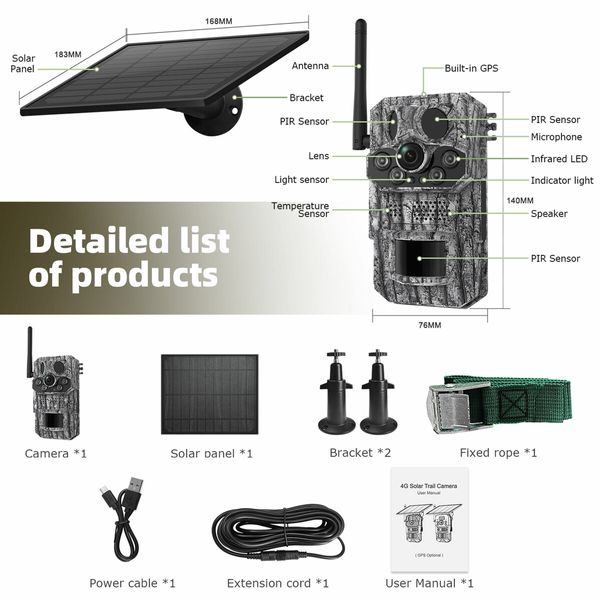

Item Name
|

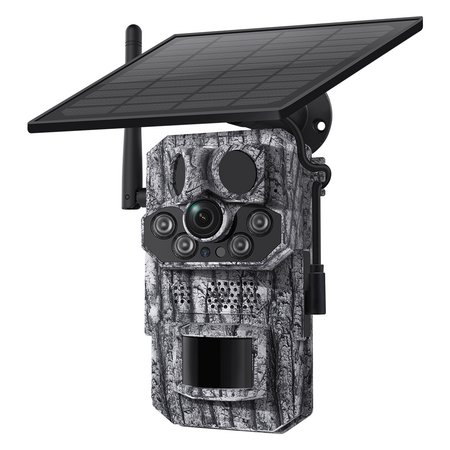

Low power consumption hunting trail solar camera
|
Model No
|
ST-HC808
|
Chipset
|
T41ZL
|
Image sensor
|
3MP CMOS sensor 1/3
|
Pixel
|
2304 X 1296/15fps 640 X 360/15fps
|
Motion detection
|
PIR+ motion detection, Distance 15-20 meters
|
Trigger speed
|
< 0.5 seconds
|

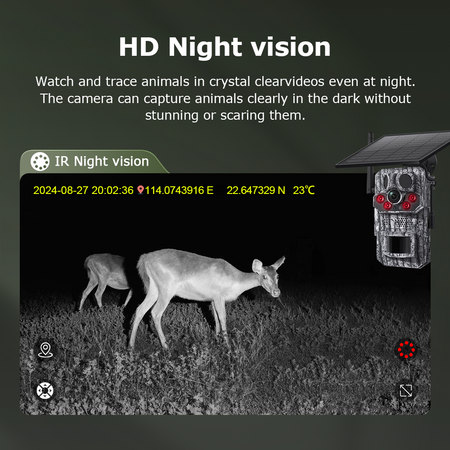

Night Vision Mode
|
4pcs 940nm IR light
|
IR distance
|
About 20 metres
|
4G module
|
ASR chip customised low power consumption module
|
Len
|
Custom black light lens, horizontal FOV 60 degrees
|
Battery
|
3pcs 18650 batteries with total capacity 7800mAh
|
Wake
|
One-way/two-way dual modes
|
Connection
|
QR code & Bluetooth
|
System
|
Linux + Rtos
|
Audio frequency
|
Audio encoding
|
AAC and G.726
|
MIC
|
High sensitivity -38dB
|
Video frequency
|
Video compression
|
H264/H265
|
Network
|
4G
|
AU
|
Network protocol
|
TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P
|
SIM card
|
Nano SIM
|
Functions
|
Event alarm
|
Support
|
GPS positioning
|
Optional
|
Temperature detection
|
Optional
|
Button
|
Power button/Reset button
|
Storage
|
Support TF Card (up to 128GB) and cloud storage
|
Playback
|
Event list playback and cloud storage playback
|
Waterproof grade
|
IP66
|
Two-way audio
|
Support
|
APP
|
Ucon, ios10.0, android5.0
|
Working environment
|
Operating temperature
|
-30°C ~+60°C
|
Working humidity
|
≤80% RH
|
